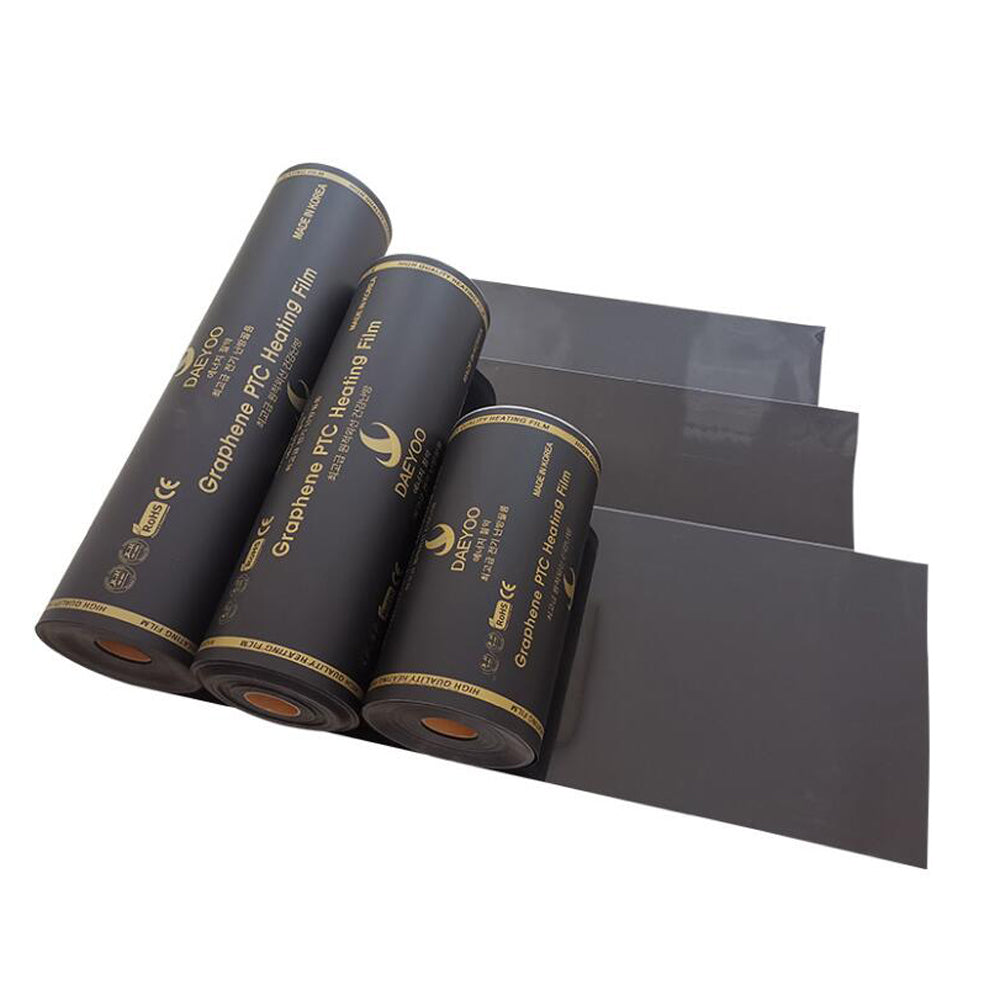

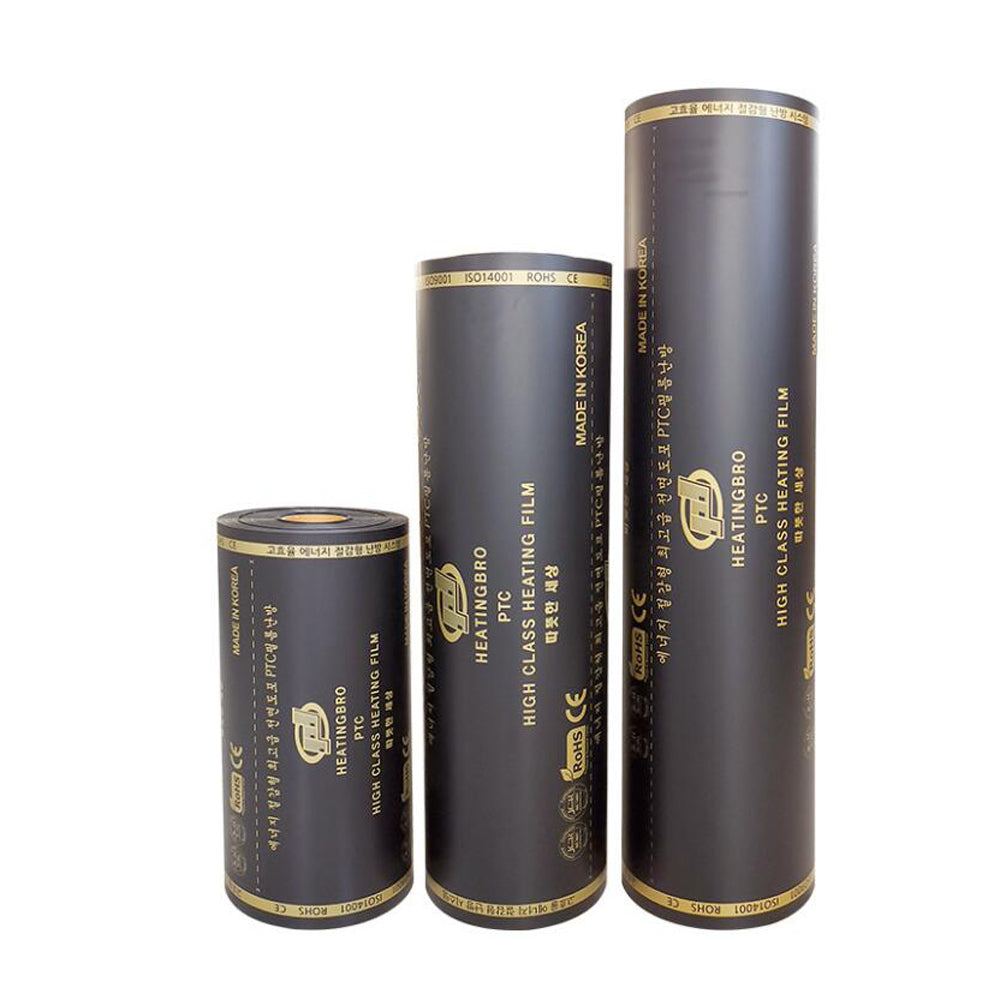

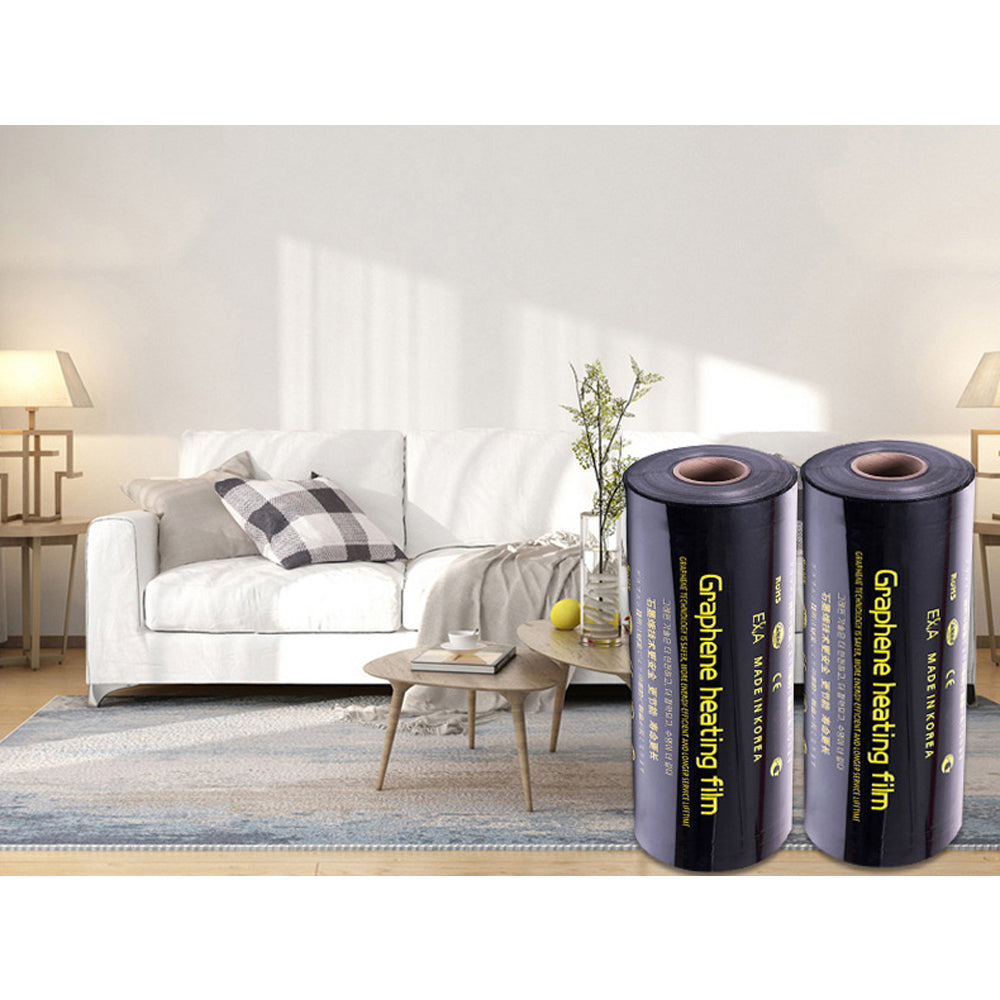

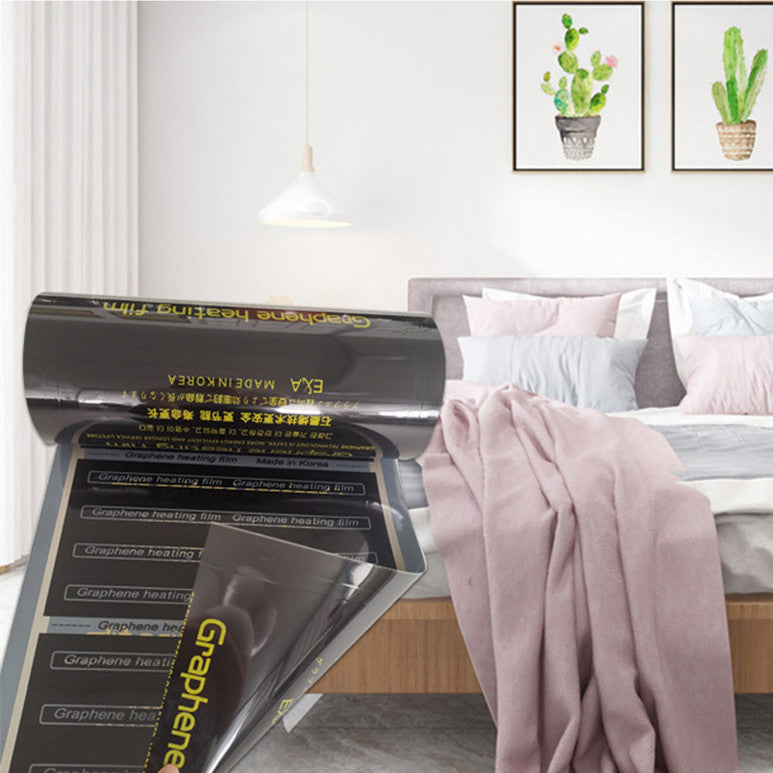

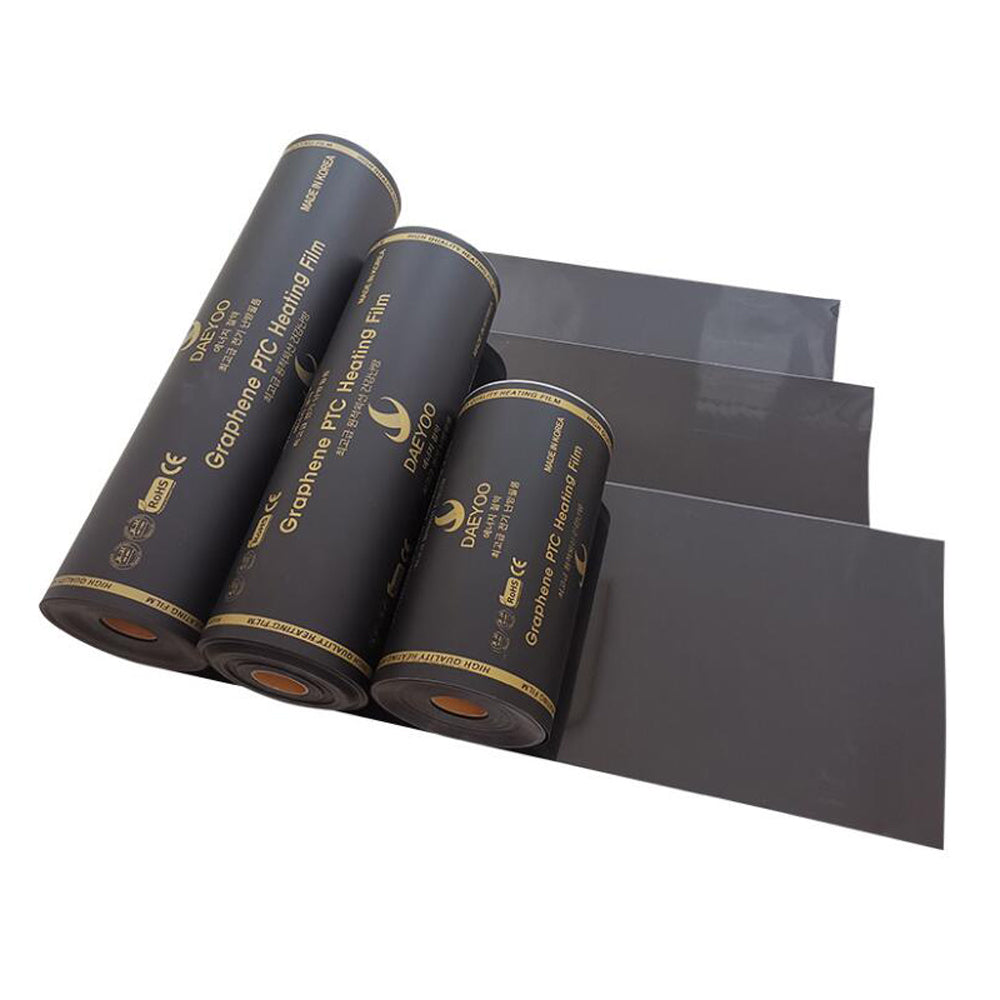

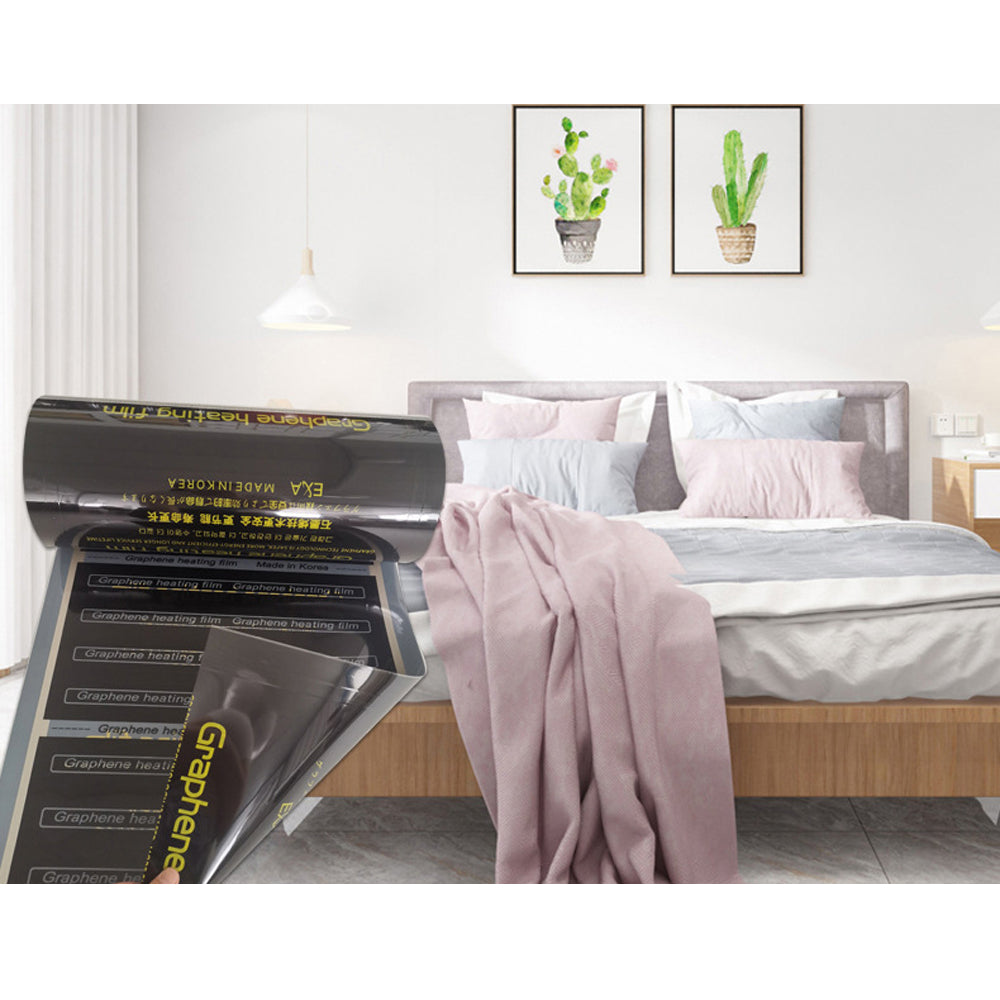

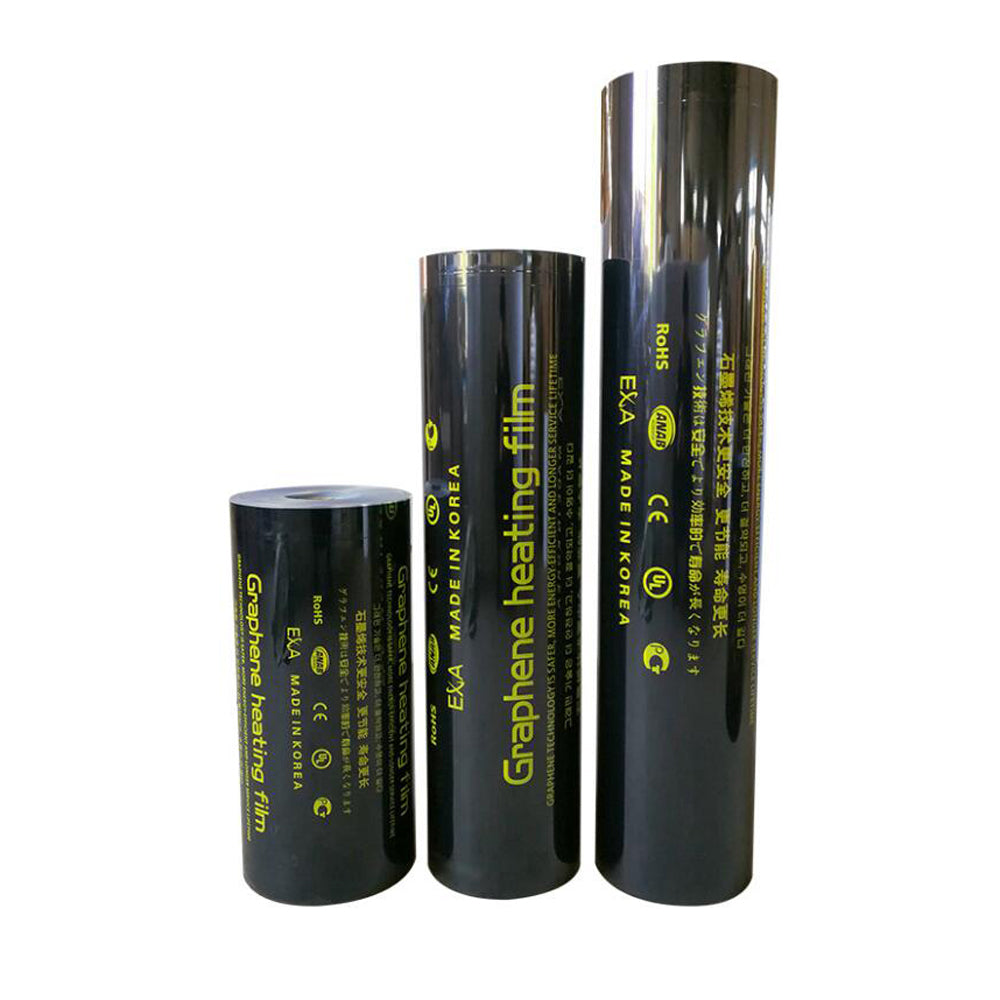

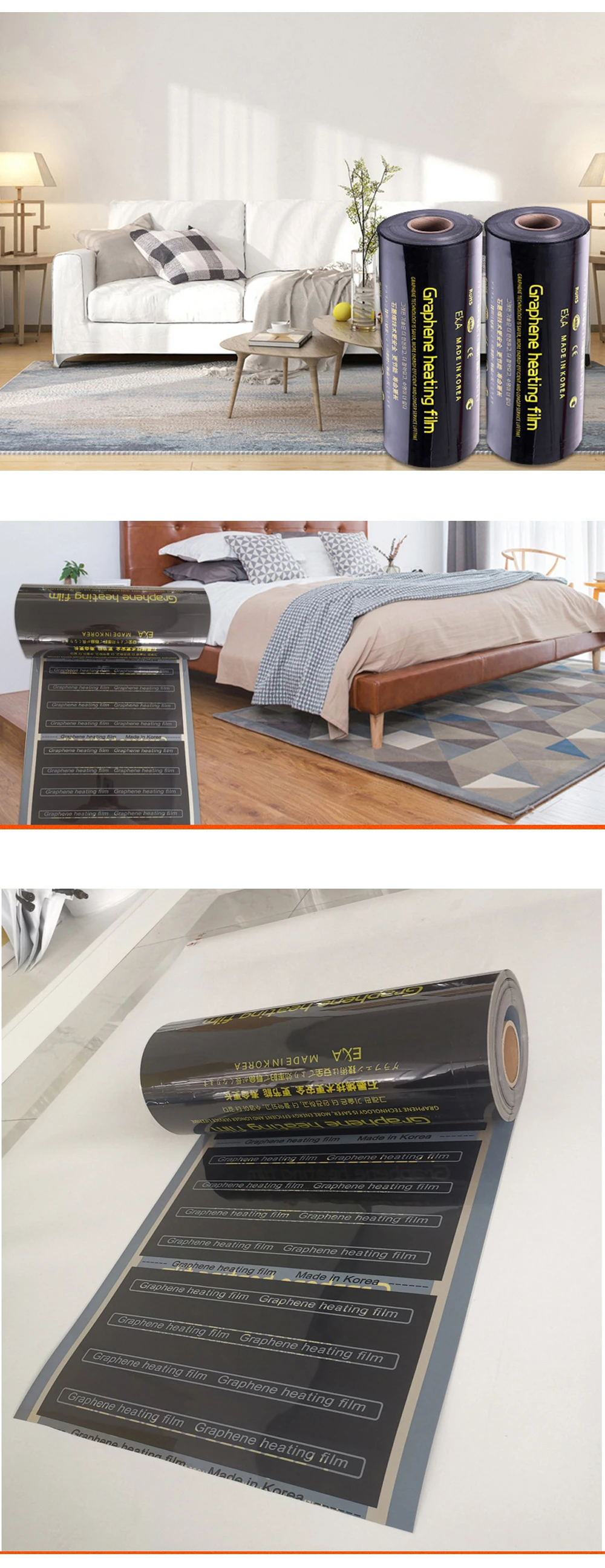

Graphene Electric Heating Film Accessories

Product information:

Thickness: 0.4 mm
Power: 220W/㎡
Frequency: 50HZ
Temperature: The temperature at room temperature is 50℃
Installation environment: -20℃-80℃
Scope of application: schools/residential communities/hotels/office buildings/libraries, etc.

Features:

1. The graphene heating film has a more stable heating structure, long-term operation without attenuation, high performance and good thermal efficiency.
2. Energy saving and electricity saving, the heating temperature of the room is 18-20℃, and the proportion of electric heating film laying is 60%-70%.
3.24H electric heating film heating, the actual working time of the thermostat controlled electric heating film is about 4 hours.
4. Reliable materials, waterproof materials, layered protection.
5. When the system is working, the surface of the electric heating film keeps running at a low temperature, and the maximum temperature does not exceed 60℃, so it will not cause burns/explosions and other accidents. The whole system is connected in parallel with stable operation and high feasibility.
6. The electric heating film can be installed and operated in an environment of -20℃-80℃, and the surface temperature of the electric heating film after power-on does not exceed 40-50℃, and does not self-ignite or explode.

Packing list:

Heating film*1

Installation Notes

1. Floor paving steps: extruded board ➔ reflective film ➔ electric heating film ➔ non-woven fabric ➔ floor.
2. Tile paving steps: extruded board ➔ reflective film ➔ connected to the electric heating film and put in a waterproof sealed bag ➔ waterproof layer ➔ wipe cement and tile.

Electric heating film construction process

Clean the ground ➔ Lay the extruded board ➔ Lay the reflective film ➔ Lay the electric heating film and wire it ➔ Connect the thermostat and stick the thermostat sensor probe ➔ Heat test ➔ Lay non-woven fabric ➔ Lay the floor
